Hot Rolled C Shape Stainless Steel Profiles Grade 316 4" X 2" X 0.25"

Product Categories
Puxiang Metal (Group) Co., LTD
Contact Now

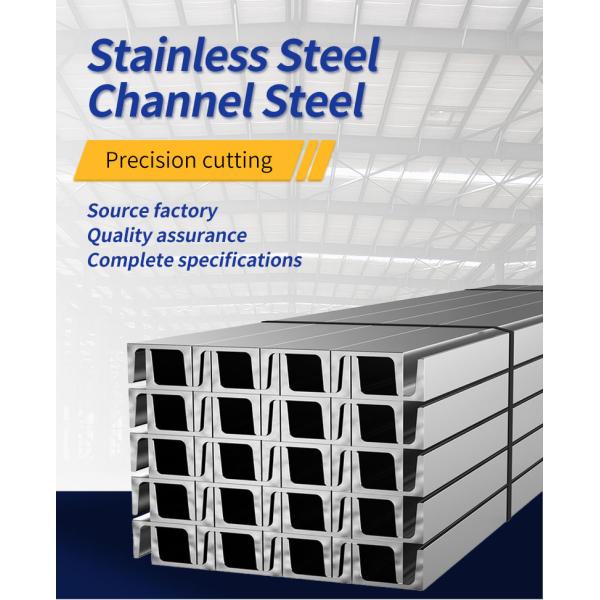

Hot Rolled C Shape Stainless Steel Profiles Grade 316 4" X 2" X 0.25"

  • 1
  • 2

Brand Name : PUXIANG, TSINGSHAN

Model Number : C Channel

Certification : ISO,CE

Place of Origin : China

MOQ : 2 ton

Price : US$2750-US$2950

Payment Terms : T/T, T/T + L/C

Supply Ability : 1000ton/month

Delivery Time : 10-15 working days after receiveing advance payment

Description : Stainless Steel C-Channel

Grade : 316

Size : 4" x 2" x 0.25"

Length : 6m or as required

Applications : Raceways, braces, frames to support equipment, machines, tanks etc.

Package : Standard Export Package

Contact Now

Hot Rolled C Shape Stainless Steel Channel, Grade 316

Stainless Channel 316 exhibits high strength and excellent corrosion resistance including in marine environments. 316 is slightly stronger than 304 stainless and is rated as a marine metal. 316 maintains its properties in cryogenic or high temperatures. It is typically used in oil and petroleum equipment, aerospace, food processing, pulp and paper processing equipment, textiles, architectural, and marine equipment.

Item No. H (mm) W (mm) Thickness (mm) Cross Section (cm²) Weight/pc (kg/m)
5# 50 37 4.5 6.928 5.438
6.3# 63 40 4.8 8.451 6.634
6.5# 65 40 4.3 / 6.709
8# 80 43 5 10.248 8.045
10# 100 48 5.3 12.748 10.007
12# 120 53 5.5 / 12.059
12.6 126 53 5.5 15.692 12.319
14#a 140 58 6 18.516 14.535
14#b 140 60 8 21.316 16.733
16#a 160 63 6.5 21.962 17.24
16#b 160 65 8.5 25.162 19.752
18#a 180 68 7 25.699 20.174
18#b 180 70 9 29.299 23
20#a 200 73 7 28.837 22.637
20#b 200 75 9 32.837 25.777
22#a 220 77 7 31.846 24.999
22#b 220 79 9 36.246 28.453
25#a 250 78 7 34.917 27.41
25#b 250 80 9 39.917 31.335
25#c 250 82 11 44.917 35.26
28#a 280 82 7.5 40.034 31.427
28#b 280 84 9.5 45.634 35.832
28#c 280 86 11.5 51.234 40.219
30#a 300 85 7.5 / 34.463
30#b 300 87 9.5 / 39.173
30#c 300 89 11.5 / 43.883
32#a 320 88 8 48.513 38.083
32#b 320 90 10 54.913 43.107
32#c 320 92 12 61.313 48.131
36#a 360 96 9 60.91 47.814
36#b 360 98 11 68.11 53.466
36#c 360 100 13 75.31 59.118
40#a 400 100 10.5 75.068 58.928
40#b 400 102 12.5 83.068 65.208
40#c 400 104 14.5 91.068 71.488
